3D Laser Scanning for Oil & Gas Facilities

Oil & gas facilities such as tank farms, refineries, and process plants are highly complex environments with dense piping networks, large storage tanks, and intricate steel structures. Engineering teams often rely on outdated as-built drawings that do not reflect modifications made over decades of operation.

This creates major challenges for:

• Retrofit projects and equipment upgrades.
• Piping re-routing and clash detection.
• Safety and compliance documentation.
• Efficient project planning in hazardous environments.

• Deployed high-resolution 3D laser scanners to capture entire facilities, including tanks, pipe racks, and process units.
• Created unified point cloud datasets covering all structures and equipment.
• Produced accurate as-built 3D models for CAD and BIM integration.
• Delivered detailed models for:
  • Tank measurement & settlement analysis.
  • Piping modifications & clash detection.
  • Structural modeling of pipe racks and steel supports.
  • Layout planning for new equipment installations.

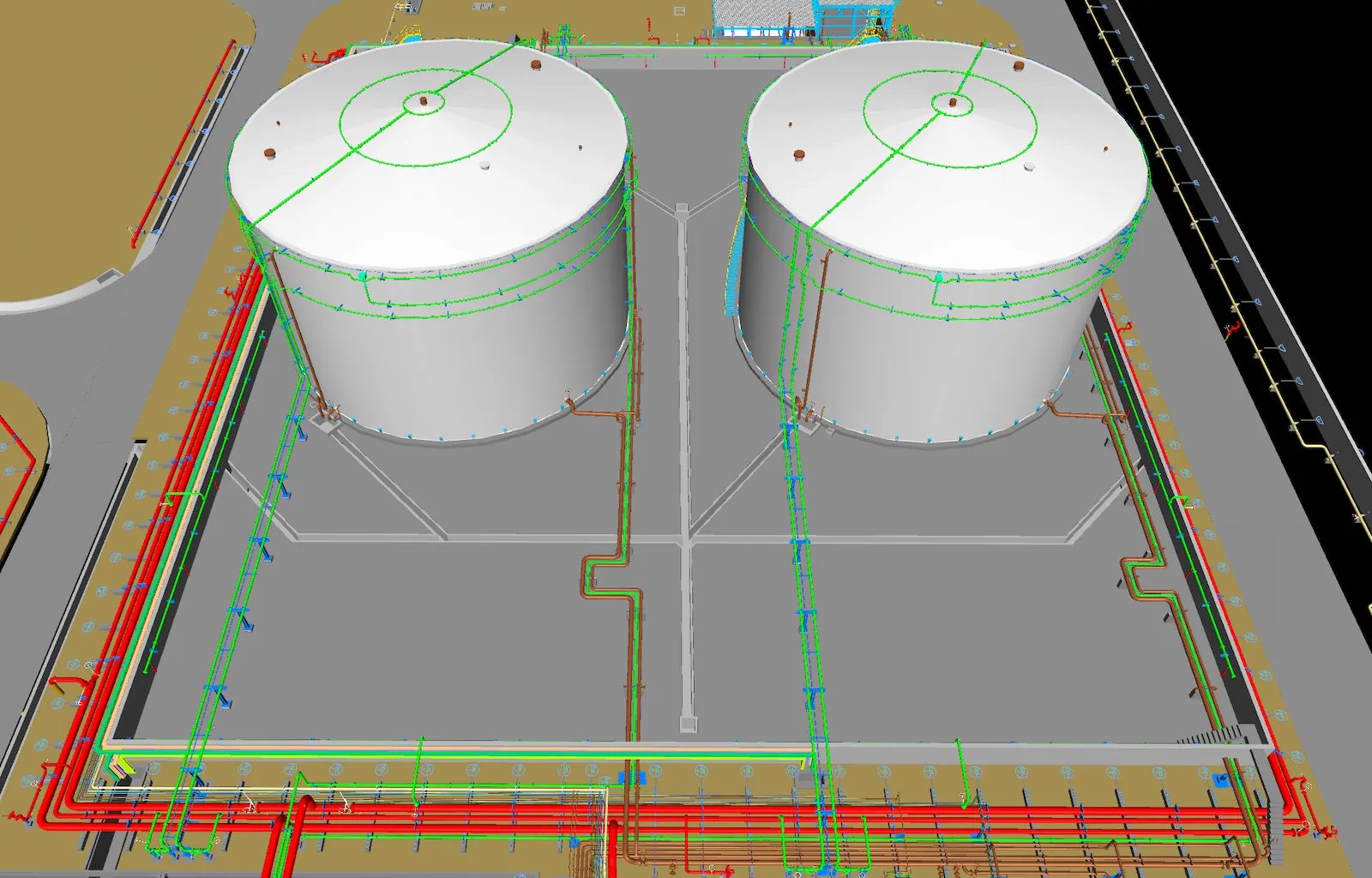

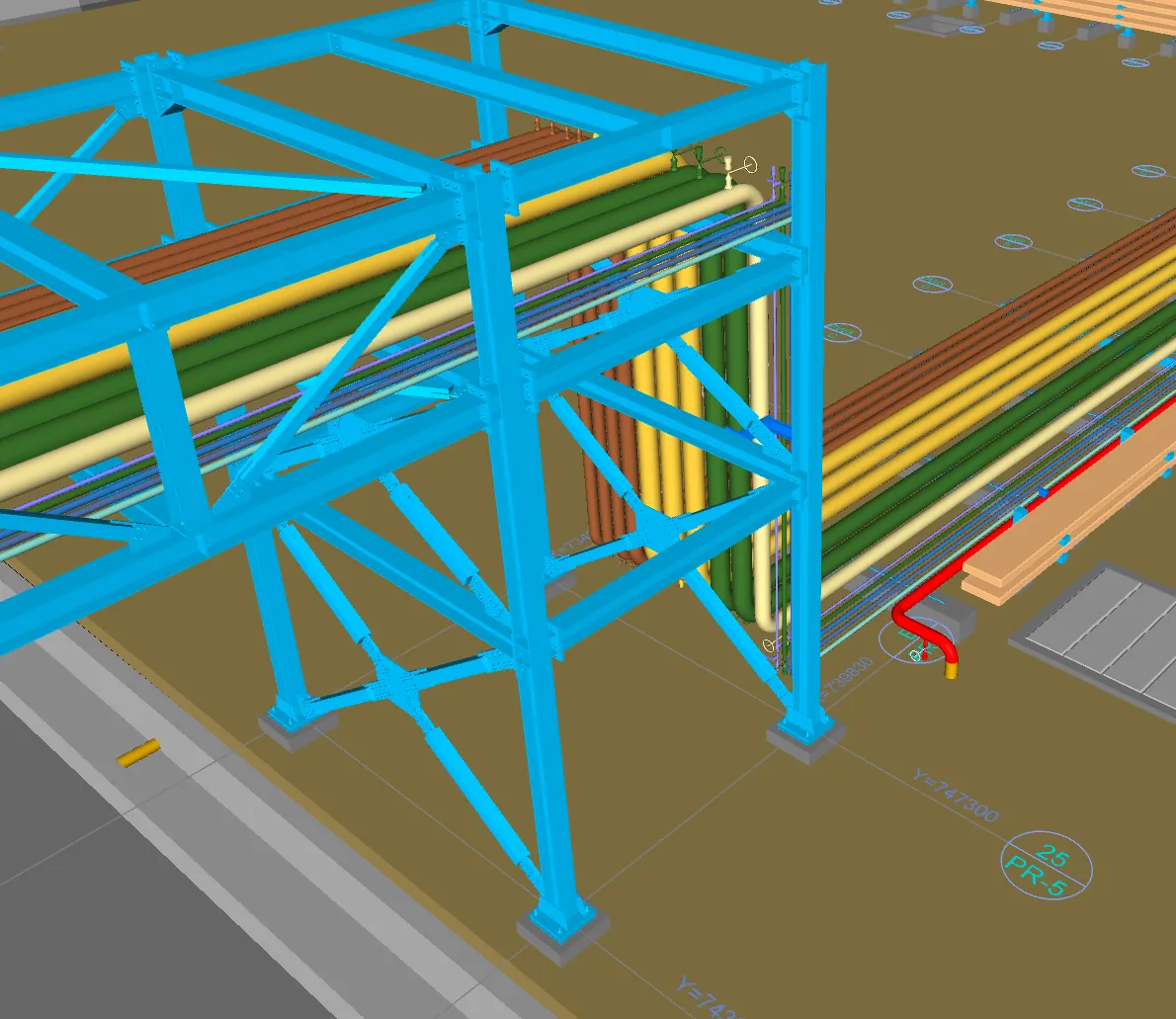

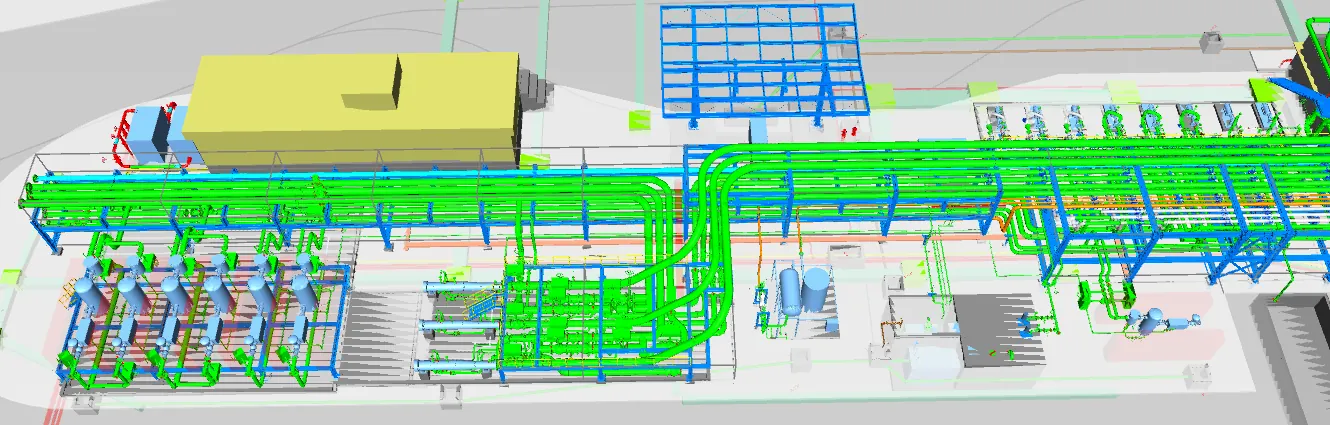

(See images – point cloud capture of tank farms and CAD-modeled piping networks)

• Millimeter Accuracy: True-to-life models of tanks, piping, and structures.
• Risk Reduction: Identified clashes before construction began.
• Efficiency: Significant reduction in on-site measurement time.
• Versatility: Data used across engineering, maintenance, and compliance.
• Cost Savings: Prevented rework and minimized downtime during retrofits.

ScanPro provided the client with a complete digital replica of their facility, enabling engineers to plan confidently, reduce errors, and accelerate project schedules. The models also serve as a permanent resource for operations, maintenance, and future expansions.

3D scanning is a game-changer in the oil & gas sector, transforming complex facilities into precise digital assets. With ScanPro, operators gain safe, accurate, and efficient solutions that reduce project risks and unlock long-term value.
